Are you trying to understand the difference between 2.5 track and 3 track uPVC windows? Or you want to know which track system is good for 3 panel windows? This blog will help you understand the differences between different track systems and help you select the right windows for your home.
The difference between 2 track 2.5 track and 3 track uPVC sliding window

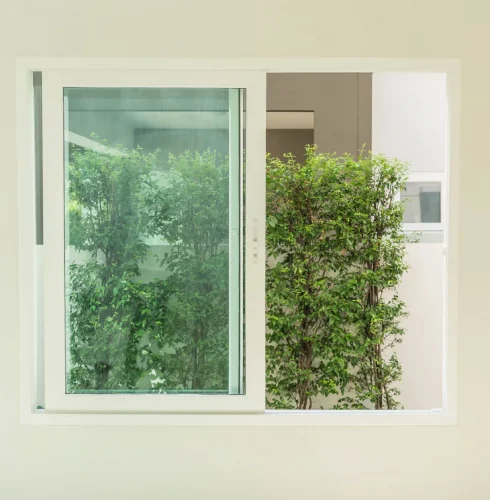

2 Track uPVC Windows
A 2 track uPVC sliding window has two tracks built into the uPVC window frame. This configuration allows two or four sash panels to be inserted into the frames.
2 track uPVC sliding windows made this way generally have two moving panels but it can also have other variations with up to 4 moving panels or sashes.
These windows are common in residential and commercial buildings.
Suggested read: 20 unique name plate designs for your home
Source: Freepik

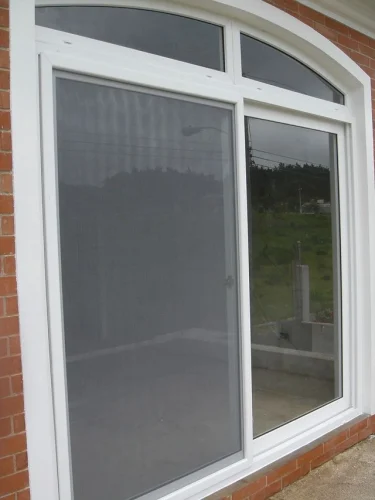

2.5 Track uPVC Sliding Window
The 2.5 track sliding window actually has three tracks but the third track can only be used for installing the mesh panel.
The reason behind it is the total available width. The third track has smaller width available compared to the two tracks thus it cannot support a glass panel since there is not enough space to fit a glass panel having 5+ mm thickness.
This way the 2.5 track sliding window can have three sash panels, two of which are fitted with glass and the third one is used to install a mosquito mesh.
Source: Pinterest

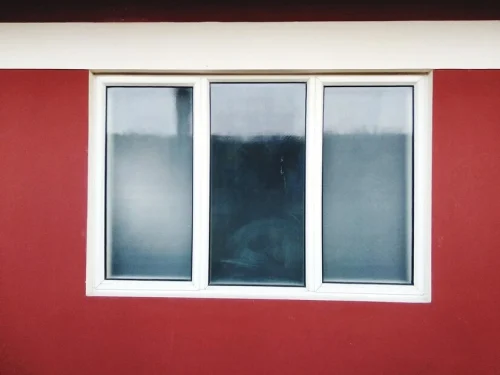

3 Track uPVC Sliding Window
A 3 track sliding window refers to windows with three parallel tracks of the frame that can support three or more sashes.
This gives an excellent degree of flexibility, both in terms of operation as well as ventilation options.
The three sashes can be used to create an expansive view and allow for more ventilation with bigger openings.
Source: Freepik
This configuration also offers more customization, such as including a sliding mesh or grill in one of the tracks. A 3 panel uPVC window setup can be highly beneficial in enhancing airflow while maintaining aesthetics.
But the three track windows generally have thicker frames going beyond 100 mm and can only be installed in walls having thickness greater than the frame thickness.
Suggested read: Top Wall Tile Design for Homes to Elevate Your Interiors
Comparison Between 2 track, 2.5 track and 3 track window
| Feature | 2 Track uPVC Window | 2.5 Track uPVC Window | 3 Track uPVC Window |
|---|---|---|---|
| Space Efficiency | Ideal for compact spaces | Suitable for moderate-sized openings | Best for larger spaces |
| Ventilation | Varies depending on size but may attract mosquitoes | Good ventilation without worrying about mosquitoes | Maximum ventilation with the choice of mosquito mesh |
Maintenance | Low maintenance with fewer moving parts | Low maintenance with additional mesh panel | Requires more maintenance due to extra panel |
| Cost | Most economical option | Moderately priced | More expensive due to additional components |
| Customization | Limited customization options | Includes a mesh track for insect protection | Highly customizable for various designs |
| Ideal Usage | Small homes, apartments, commercial spaces | Homes needing insect protection with ventilation | Large rooms, balconies, patios |
| Structural Strength | Basic structural support | Improved strength with an additional track | Best for large openings, reinforced for durability |
Suggested read: 20 unique name plate designs for your home
Benefits of 2 Track uPVC Windows
2 track uPVC sliding windows are more economical than 3 track systems due to their simplistic design with fewer components. Due to these reasons, 2 track uPVC windows make an excellent choice for nominal light and ventilation requirements in any household or commercial building.
Space
These windows are ideal for small spaces where maximizing available space is essential. Being composed of only two panes, they take up less horizontal space, making them perfect for compact rooms.
You can apply a 2 track 3 panel sliding window in homes where space is a premium, such as apartments or smaller houses.
Suggested read: 10 Stunning Grill Designs to Elevate Your Outdoor Space
Little Maintenance
Furthermore, the 2-track windows have fewer moving parts than 3-track windows, and are easily cleaned and lubricated. The fewer movements by design imply the windows have fewer worn parts that require certain adjustments.
Benefits of uPVC 3 track sliding window
A 3 track uPVC window offers larger openings and superior ventilation. When all three panels are fully movable, they enable the opening of two-thirds of the window space for optimal air circulation. This is particularly beneficial in tropical climates or during summer when better ventilation is required.
Additionally, upvc windows 3 track configurations can help reduce dependency on air conditioning, leading to energy savings.
Greater Flexibility
The extra track and panel will equally lend you more flexibility in the use of the window. Of the three available panels, the opening of any and which panel will let air both ways. This adds to the flexibility of the window to operate according to the weather demand or your preference.
Suitable for larger openings
The 3-track systems are ideal for larger window areas or sliding doors. More tracks give the necessary structural support for a bigger opening; though stability and smooth operation are equally preserved, this further extends their preference for use in greater living rooms, patios, or balconies where huge windows or doors can serve to improve the beauty and functionality of the space at large.
Suggested read: Top Wall Tile Design for Homes to Elevate Your Interiors
Better Strength and more Customization
Three track uPVC windows generally have thicker frames and reinforcement, enhancing their durability. They are better suited for large openings and areas exposed to strong winds. Additionally, the difference between 2.5 track and 3 track uPVC windows is that 2.5 track windows include a narrower third track, typically for a mesh or screen, whereas 3 track windows have equal-sized tracks for all panels, offering greater functionality.
Benefits of 2.5 Track uPVC Sliding Windows
2.5 track uPVC sliding windows offer a balance between 2 track and 3 track systems. They feature an additional narrow track for a mosquito mesh, making them ideal for homes that need both ventilation and insect protection.
Space Efficiency
These windows are perfect for moderate-sized spaces, allowing fresh air while keeping insects out. The extra track accommodates a mesh without compromising the glass panels, making them ideal for bedrooms, kitchens, and balconies.
Insect Protection & Low Maintenance
Unlike 2 track windows, 2.5 track windows include a dedicated mesh track, ensuring better airflow while preventing insects from entering. With fewer moving parts than 3 track systems, they require minimal maintenance, offering durability and easy cleaning.
A practical choice for those seeking functionality, ventilation, and protection, 2.5 track sliding windows are a cost-effective solution for modern homes.
Conclusion
The choice between 2 track and 3 track uPVC sliding windows comes down to your needs, preferences and budget. By considering the points discussed above, you can make an informed decision and choose the window that offers you the desired benefits without breaking the bank. Be it a simple 2 track sliding window or a more versatile 3 track uPVC sliding window, the choice is never unsatisfying when it comes to fitting a modern home.
Discover GreenFortune, Your Partner in Quality uPVC Windows and Doors
At GreenFortune, we are proud to offer high-quality uPVC windows and doors at affordable prices. We offer and install a variety of window types for all homes with both durability and aesthetics in mind.
Contact us to find out more about the uPVC window design that we offer. Whether you are renovating your existing home or building a new one, partner with us to elevate the comfort levels and energy efficiency in addition to the style quotient of your space provided by our superior-quality uPVC windows.
Frequently Asked Questions
Of the two designs for uPVC windows, which is more energy-efficient: 2 tracks or 3 tracks?
The answer is going to have to be that both 2 track and 3 track uPVC can end up being energy efficient. It would be because of the glass used, either double-glazed or triple-glazed, the quality of the uPVC frame, and how it is sealed. Ensure the presence of good energy ratings for the window to ensure perfect performance.
Are 3-track uPVC windows more secure than 2-track windows?
Security is dependent on the locking mechanism and strength of the frame, as well as installation. Although 3-track windows may be safer in some aspects because of their added structural support, good-quality 2-track windows with multi-point locking systems can be equally secure.
Can existing 2-track windows be replaced with 3-track windows without major renovations?
One thing to keep in mind in replacing 2 track windows with 3 track windows is that window openings and frames may need to be resized. That makes the replacement more involved and expensive. Consult with a professional installer about assessing feasibility and possible costs.
