Ever wondered how engineers figure out if fresh concrete is good enough for a building or a bridge?
It’s not just guesswork — it’s often something as simple as a slump test. This quick check can tell you a lot about how your concrete will behave once it’s poured, set, and stressed in real life.
But how do you read the results properly? What do slump test values really tell us about the performance of concrete in different conditions?
In this guide, we’ll break it down completely — not just the basics, but also valuable insights, data points, real-world examples, and best practices that even many professionals overlook.
What is a Slump Test?
A slump test measures the consistency and workability of fresh concrete before it sets. In simple words, it checks how easily concrete flows — whether it’s too stiff, just right, or too runny.

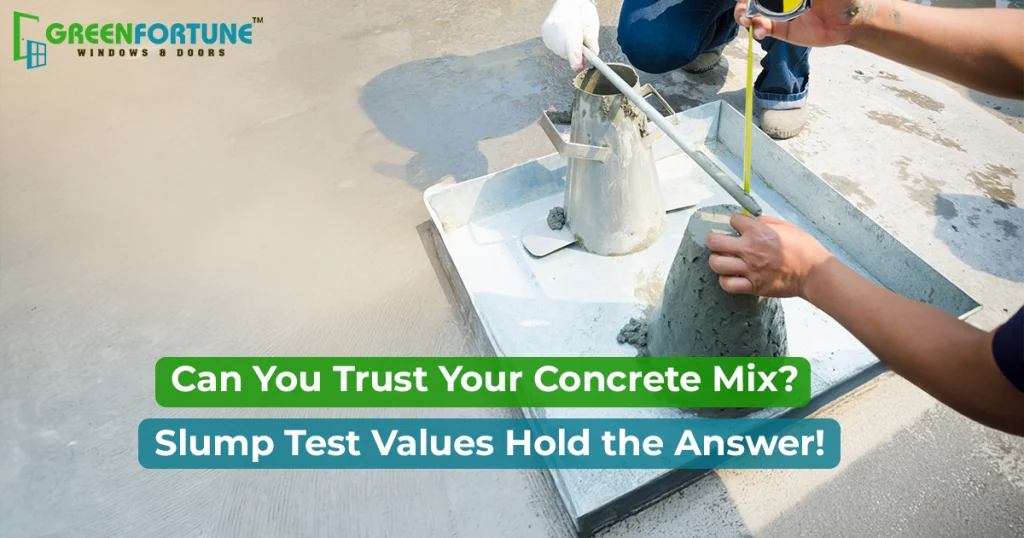

Here’s how it works: fresh concrete is filled into a standard metal mould shaped like a cone (known as an Abrams cone). The cone is then lifted, and the concrete’s slump (the amount it subsides or sags) is measured in millimetres. The result gives the slump value of concrete, which helps engineers decide if it’s usable for the intended structure.
The slump test is quick, low-cost, and doesn’t need fancy equipment, making it the most common concrete quality test at every major construction site.
Interpreting Slump Test Values
Reading slump test values correctly is vital because they directly impact concrete strength, durability, and finish quality.
Here’s a basic table that shows typical slump values and what they mean:
Slump Value (mm) | Workability | Typical Use |
0–25 mm | Very Low | Pavements, road work using vibrators |
10–40 mm | Low | Foundations with heavy reinforcement |
50–90 mm | Medium | Normal reinforced concrete in slabs, beams, and columns |
100–175 mm | High | Complex shapes with dense reinforcements |
Example:
- A slump value of 20 mm is ideal for machine-compacted road bases.
- A slump value of concrete around 75 mm is suitable for residential slabs where moderate flow is needed.
- Anything above 125 mm typically points to a concrete mix with higher water content, needing extra control to avoid segregation.
Important:
While higher slump test values may seem better (more workable), they often come with a hidden risk — reduced strength if not properly proportioned.
What Slump Tells Us About Concrete
When you test and observe the slump test values, you unlock a wealth of information about your concrete, including:
Water Content
Generally, higher slump values mean more water. However, water isn’t always beneficial — excess water weakens the concrete over time.
Mix Uniformity
Consistent slump value of concrete across different batches suggests a well-controlled mixing process. Large variations indicate mixing problems, contamination, or inconsistent batching.
Suitability for Application
Different construction needs call for different slump types.
For instance, a true slump (where concrete subsides evenly) shows cohesive concrete, while a shear slump (where part of the concrete shears off) suggests poor cohesion, not ideal for critical structures like columns or beams.
Slump Type | Indication |
True Slump | Good workability |
Shear Slump | Poor cohesion, potential segregation |
Collapse Slump | Overly wet mix, serious risk of failure |
Admixture Effects
The use of plasticisers or superplasticisers can raise slump values without adding water. This is a key reason why simply interpreting slump test values without knowing the admixtures used can be misleading.
Limitations of the Slump Test
While the slump test is extremely handy, it’s important to recognise where it falls short:
Not Ideal for All Concrete Types
High-flow concrete (like self-compacting concrete) or dry mixes (for RCC roads) don’t behave predictably in a slump cone. Their slump test values might show misleading results.
No Information About Strength
A good slump value of concrete doesn’t guarantee high strength. Concrete strength depends on the water-cement ratio, curing, and materials, not just the slump.
Inconsistency Due to Operator Errors
If the cone isn’t properly filled, compacted, or lifted, the slump test values can vary wildly. Even factors like wind speed, temperature, and operator skill affect the outcome.
Best Practices for Accurate Slump Testing
To get trustworthy slump test values, follow these expert-backed practices:
Use a Clean, Standard Cone
Always use an IS:1199 compliant mould. Any dents, rust, or non-standard dimensions can skew results.
Fill in Layers and Compact Properly
Concrete must be filled in three layers, each compacted 25 times with a standard rod. Missing compaction steps lead to false high slump values.
Perform the Test Quickly
From mixing to testing, the entire process should take no more than 2 minutes. Delays cause premature setting and incorrect slump test values.
Level and Clean the Base
The slump cone must be placed on a flat, non-absorbent surface. Dusty or uneven surfaces distort the slump pattern.
Record Environmental Conditions
Ambient temperature and humidity significantly impact the test. Always note these down when documenting slump test values.
Unique Expert Tip: Slump Loss Tracking
One technique rarely discussed online is slump loss tracking.
In high-rise projects, engineers often perform two slump tests — one at mixing and another at pouring after transportation. Tracking slump value loss over time can reveal problems like setting during transit or water loss, helping to preempt serious construction issues.
Example:
- Concrete had a slump of 100 mm at mixing. After 30 minutes of transit, it reduced to 50 mm.
- This points to potential early setting, and site engineers might choose to add set retarders in future batches.
This proactive tracking system makes concrete quality management far more predictable and efficient — a practice that's highly recommended in professional setups but often overlooked.
Ready to Strengthen Your Building Foundation Even Further?
At Green Fortune, you will find high-quality uPVC doors and windows designed for durability, insulation, and a modern finish.
Whether you are upgrading a residential home or working on a commercial project, Green Fortune’s precision-engineered uPVC products complement excellent construction work, ensuring your project stands out for years.
Explore premium uPVC solutions at thegreenfortune.com and bring superior quality to every build.
FAQs
- What is considered a good slump value for concrete?
A good slump value of concrete generally ranges between 50–90 mm for normal reinforced work. This range indicates the right balance between workability and strength without excessive water. - Why do slump test values vary even within the same project?
Variations in slump values often happen due to changes in water content, temperature, or batching inconsistencies. Consistent testing methods help detect and control these changes early. - Is the slump test mandatory for every concrete pour?
While not legally mandatory everywhere, performing a slump test before major pours is strongly recommended. It helps identify and correct quality issues before the concrete sets permanently. - What does a collapse slump indicate about the concrete mix?
A collapse slump type means the concrete is too wet or overmixed, risking segregation and strength loss. Such mixes need immediate attention before use on-site.
5. Can additives affect slump test results?
Yes, chemical admixtures like superplasticisers can increase slump test values without
